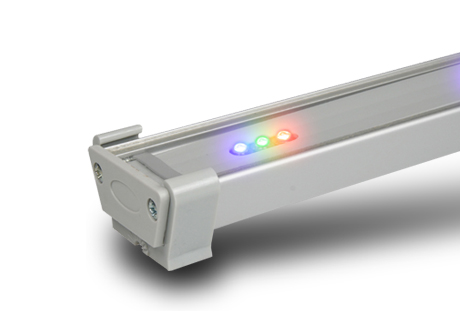

Lux–Bar LED RGBW (non optic) Standard IP20
A range of quality LED bars manufactured in an aluminum extrusion available in four lengths 400mm, 800mm, 1200mm and 1600mm. Using Luxion 1watt K2 LED`s with the option of six static colours and two colour changing RGB/RGBW , red, blue, green, amber, cool white (CW) and warm white( WW), having a lifetime of up to 50,000 hours and the benefit of very low energy consumption.

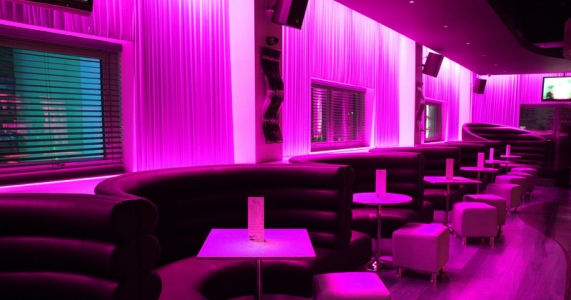

The Lux battens, come fitted with no optics having 140 degrees of light and are idea for, uplighting and downlighting walls, colour changing or static colours for use in commercial buildings, clubs, bars or any indoor application.
-
• For interior use only IP20
• Power consumption (400) 16.2W, (800) 32.4W, (1200) 48.6W and (1600)59W per fitting!
• Limitless colour, achieve 16 million vibrant colours with RGB and RGBW mixing
• Easy setup with LUX drivers and controllers
• Excellent colour mixing.
• Complete with mounting Brackets supplied
• Expandable, connect multiple LUX36 / LUX48 and LUX192 DMX driver modules together.
• Generating powerful RGB colour change effects for indoor use
• Max. input current: 350 mA
• Power consumption: 16.2W, 32.4, 48.6W and 59W
• Lengths: 400mm, 800mm, 1200mm and 1600mm
• Size: 30mm (Height) 45mm (Width)
• RGB / RGBW colour mixing
• Single colour Red, Green, Blue, Amber, Warm White or Cool White
• Operating Ambient Temp. Range: -20°C/ +40°C
• Operating Temperature: +50°C @ ambient 25°
• Cooling System: convection -
Driver Lux 36

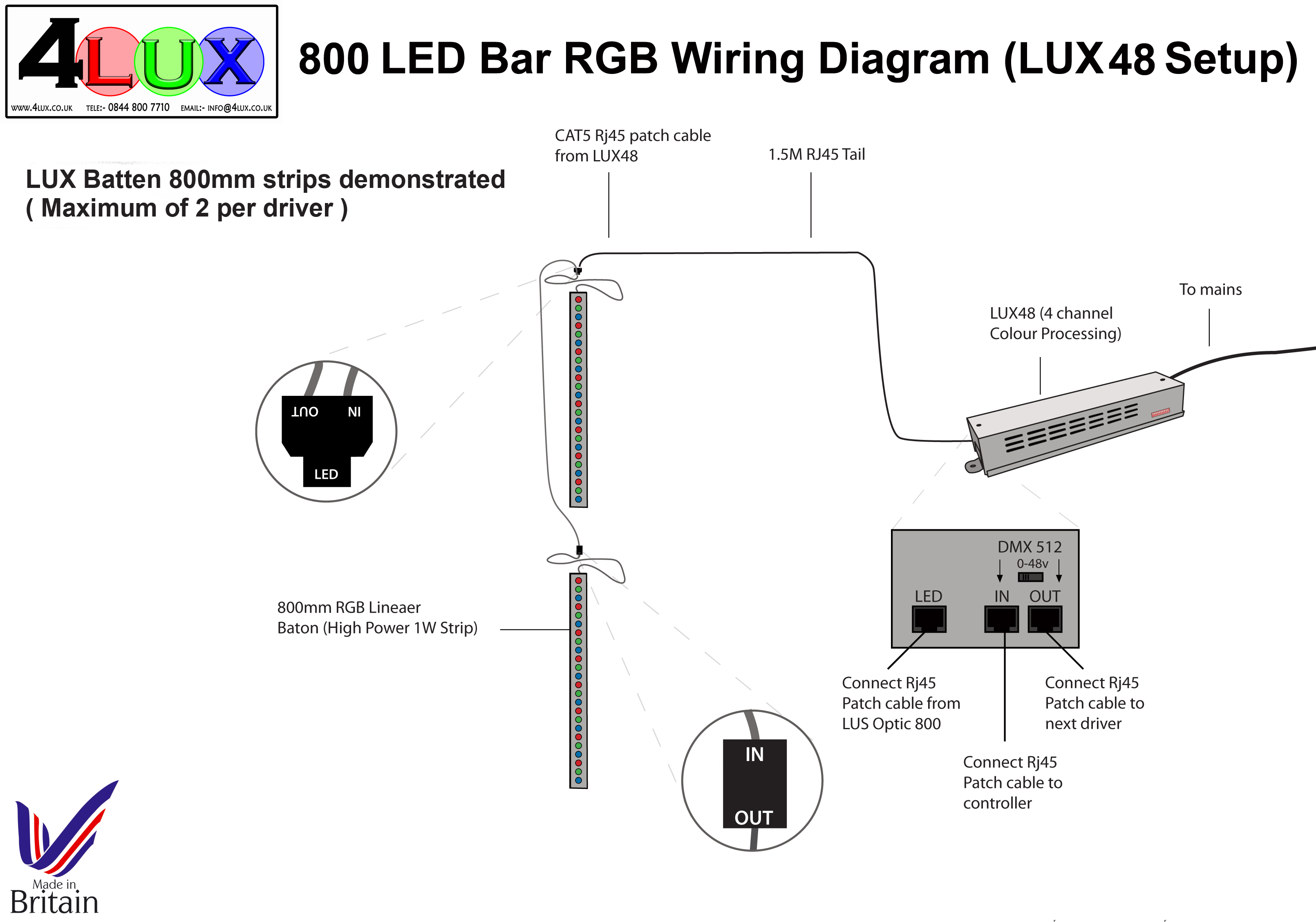

Lux 48-800mm

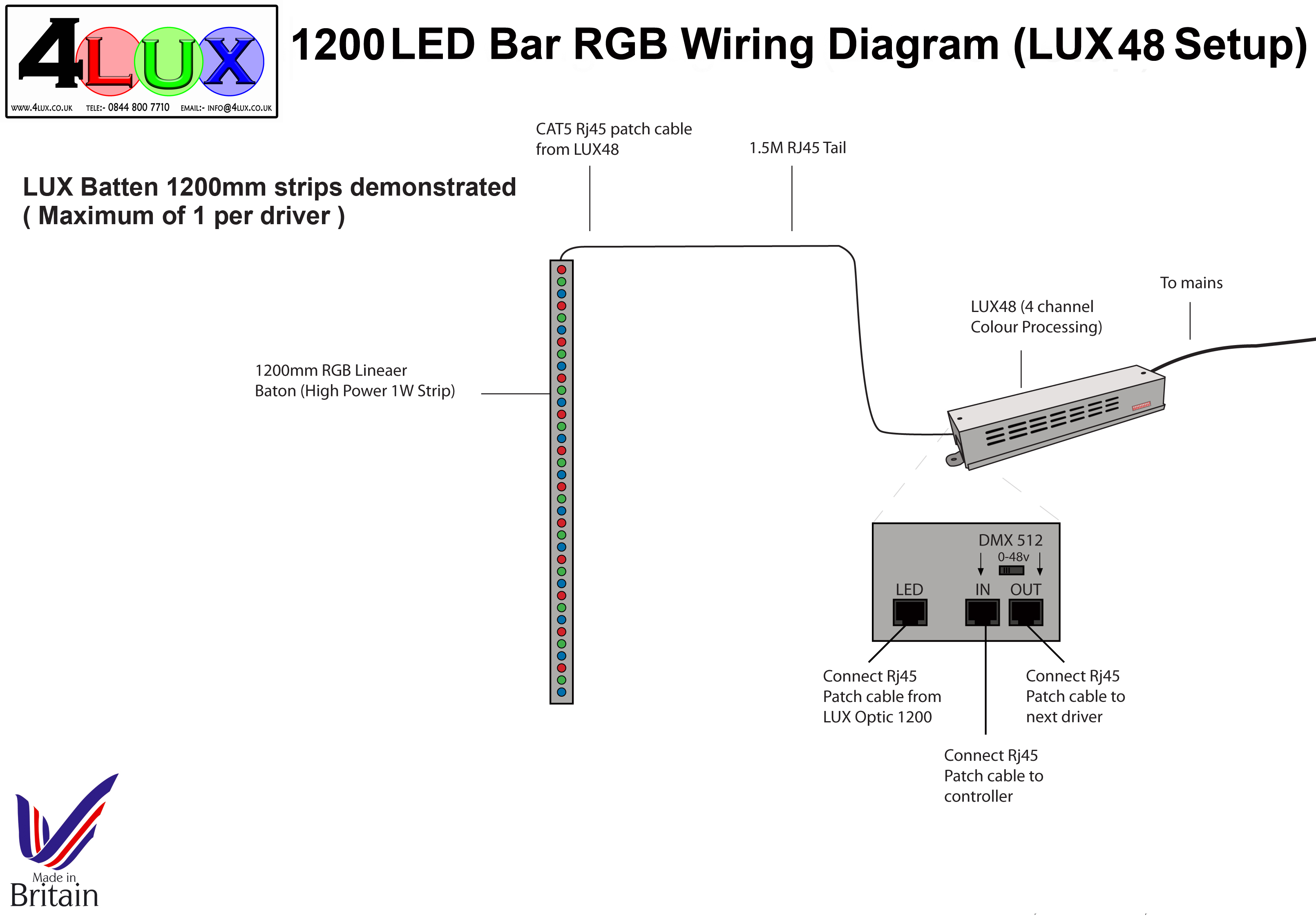

Lux 48-1200mm
